STD4N80K5

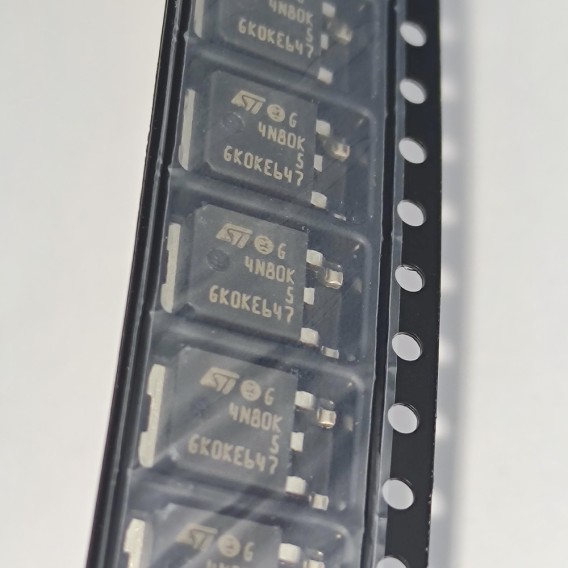

MOSFET (Metal Oxide) N-Channel Cut Tape (CT) 2.5 Ω @ 1.5A, 10V ±30V 175pF @ 100V 10.5nC @ 10V TO-252-3, DPak (2 Leads + Tab), SC-63
- Manufacturer: STMicroelectronics
- NO: 761-STD4N80K5
- Package: TO-252-3, DPak (2 Leads + Tab), SC-63
- Datasheet:
- Stock: 5318
- Description: MOSFET (Metal Oxide) N-Channel Cut Tape (CT) 2.5 Ω @ 1.5A, 10V ±30V 175pF @ 100V 10.5nC @ 10V TO-252-3, DPak (2 Leads + Tab), SC-63 (Kg)
