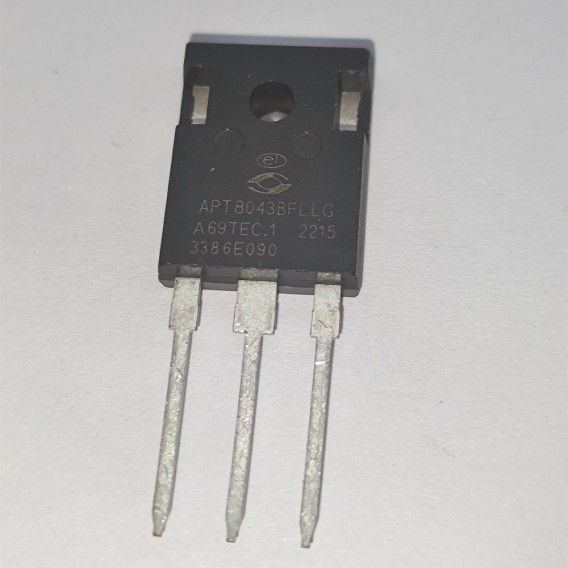

APT8043BFLLG
MOSFET (Metal Oxide) N-Channel Tube 430m Ω @ 10A, 10V 2500pF @ 25V 85nC @ 10V TO-247-3
- Manufacturer: Microsemi Corporation
- NO: 523-APT8043BFLLG
- Package: TO-247-3
- Datasheet:
- Stock: 11314
- Description: MOSFET (Metal Oxide) N-Channel Tube 430m Ω @ 10A, 10V 2500pF @ 25V 85nC @ 10V TO-247-3 (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | POWER MOS 7® |
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Technology | MOSFET (Metal Oxide) |
| RoHS Status | RoHS Compliant |
| Published | 1997 |
| Voltage - Rated DC | 800V |
| Current Rating | 20A |
| Package / Case | TO-247-3 |
| Lead Free | Lead Free |
| Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
| Radiation Hardening | No |
| Max Power Dissipation | 403W |
| Power Dissipation | 403W |
| Number of Elements | 1 |
| Turn On Delay Time | 9 ns |
| Rise Time | 5ns |
| Fall Time (Typ) | 5 ns |
| Turn-Off Delay Time | 25 ns |
| Continuous Drain Current (ID) | 20A |
| Gate to Source Voltage (Vgs) | 30V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 2500pF @ 25V |
| Rds On (Max) @ Id, Vgs | 430m Ω @ 10A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 1mA |
| Current - Continuous Drain (Id) @ 25°C | 20A Tc |
| Gate Charge (Qg) (Max) @ Vgs | 85nC @ 10V |
