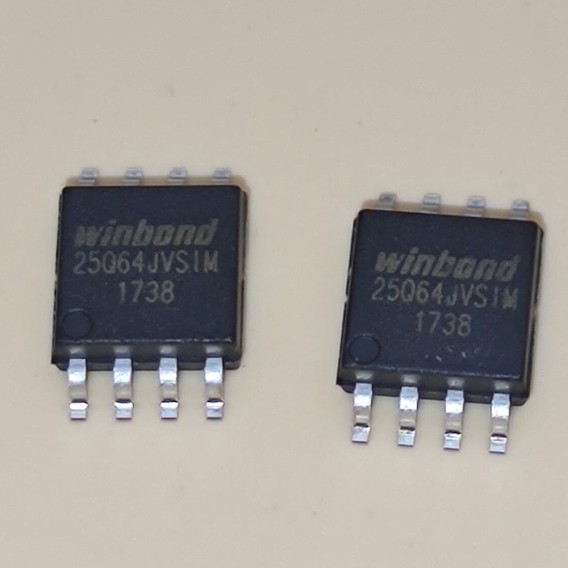

W25Q64JVSSIM
SpiFlash® Memory IC SpiFlash® Series 5.28mm mm
- Manufacturer: Winbond Electronics
- NO: 888-W25Q64JVSSIM
- Package: 8-SOIC (0.209, 5.30mm Width)
- Datasheet:
- Stock: 8659
- Description: SpiFlash® Memory IC SpiFlash® Series 5.28mm mm (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | SpiFlash® |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Technology | FLASH - NOR |
| Operating Mode | SYNCHRONOUS |
| Height Seated (Max) | 2.16mm |
| RoHS Status | ROHS3 Compliant |
| Published | 2017 |
| Package / Case | 8-SOIC (0.209, 5.30mm Width) |
| Length | 5.28mm |
| Width | 5.28mm |
| Number of Terminations | 8 |
| Factory Lead Time | 10 Weeks |
| Pbfree Code | yes |
| Number of Functions | 1 |
| Surface Mount | YES |
| Voltage - Supply | 2.7V~3.6V |
| Terminal Position | DUAL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Supply Voltage | 3V |
| Terminal Pitch | 1.27mm |
| Supply Voltage-Max (Vsup) | 3.6V |
| Supply Voltage-Min (Vsup) | 2.7V |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| JESD-30 Code | S-PDSO-G8 |
| Memory Size | 64Mb 8M x 8 |
| Memory Type | Non-Volatile |
| Programming Voltage | 3V |
| Clock Frequency | 133MHz |
| Memory Format | FLASH |
| Memory Interface | SPI - Quad I/O |
| Organization | 8MX8 |
| Memory Width | 8 |
| Write Cycle Time - Word, Page | 3ms |
| Memory Density | 67108864 bit |
| Parallel/Serial | SERIAL |
