VNI4140K

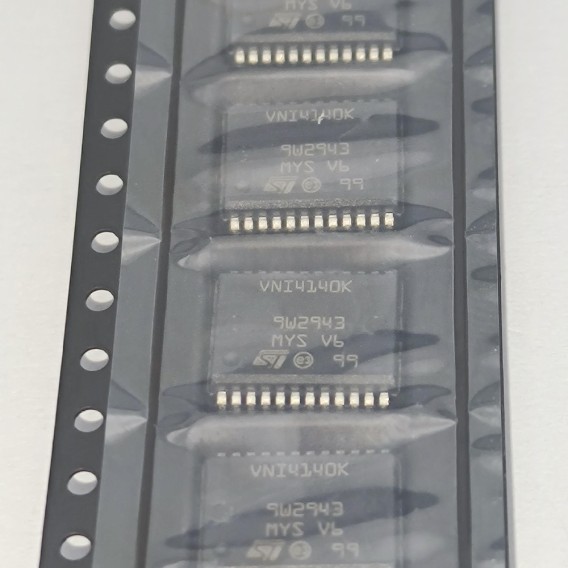

N-Channel 0.8mm PMIC VIPower? Series VNI4140 24 Pin 24V 24-PowerBSOP (0.295, 7.50mm Width)
- Manufacturer: STMicroelectronics
- NO: 761-VNI4140K
- Package: 24-PowerBSOP (0.295, 7.50mm Width)
- Datasheet:
- Stock: 5854
- Description: N-Channel 0.8mm PMIC VIPower? Series VNI4140 24 Pin 24V 24-PowerBSOP (0.295, 7.50mm Width) (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | VIPower™ |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C TJ |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Input Type | Non-Inverting |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 24-PowerBSOP (0.295, 7.50mm Width) |
| Length | 10.5mm |
| Height | 2.4mm |
| Width | 7.6mm |
| Lead Free | Lead Free |
| Number of Terminations | 24 |
| Factory Lead Time | 14 Weeks |
| REACH SVHC | No SVHC |
| Resistance | 80mOhm |
| Number of Pins | 24 |
| Interface | On/Off |
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) |
| ECCN Code | EAR99 |
| Radiation Hardening | No |
| Number of Functions | 4 |
| Nominal Supply Current | 2.4mA |
| JESD-609 Code | e3 |
| Feature | Status Flag |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 24V |
| Terminal Pitch | 0.8mm |
| Base Part Number | VNI4140 |
| Pin Count | 24 |
| Supply Voltage-Max (Vsup) | 36V |
| Supply Voltage-Min (Vsup) | 10.5V |
| Number of Channels | 2 |
| Subcategory | Peripheral Drivers |
| Max Output Current | 1A |
| Output Current | 700mA |
| Output Type | N-Channel |
| Voltage - Load | 10.5V~36V |
| Number of Outputs | 4 |
| Switch Type | General Purpose |
| Output Configuration | High Side |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Output Peak Current Limit-Nom | 1.3A |
| Built-in Protections | TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE |
| Collector Emitter Voltage (VCEO) | 41V |
| Max Collector Current | 700mA |
| Output Current per Channel | 700mA |
| Driver Number of Bits | 4 |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Rds On (Typ) | 80m Ω (Max) |
| Ratio - Input:Output | 1:1 |
