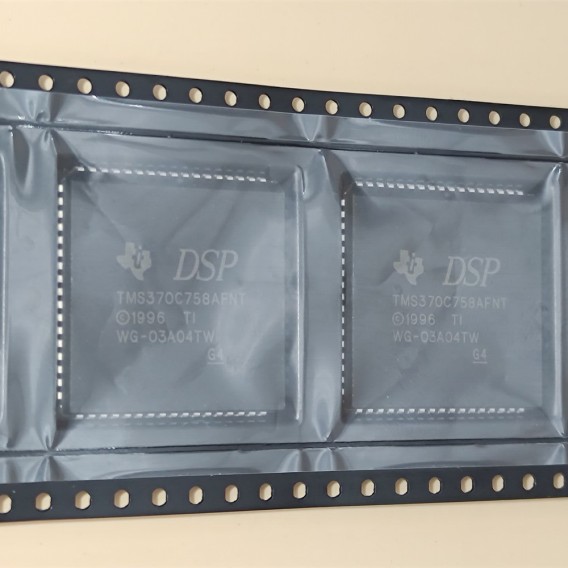

TMS370C758AFNT
32KB 32K x 8 OTP 8-Bit Microcontroller TMS370 Series 370C758 68 Pin 5MHz 5V 68-LCC (J-Lead)
- Manufacturer: Texas Instruments
- NO: 815-TMS370C758AFNT
- Package: 68-LCC (J-Lead)
- Datasheet:
- Stock: 22712
- Description: 32KB 32K x 8 OTP 8-Bit Microcontroller TMS370 Series 370C758 68 Pin 5MHz 5V 68-LCC (J-Lead) (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Discontinued |
| Series | TMS370 |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C TA |
| Packaging | Tray |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Technology | CMOS |
| Frequency | 5MHz |
| Height Seated (Max) | 4.57mm |
| RoHS Status | Non-RoHS Compliant |
| Package / Case | 68-LCC (J-Lead) |
| Operating Supply Voltage | 5V |
| Lead Free | Contains Lead |
| Number of Terminations | 68 |
| Number of Pins | 68 |
| Interface | SCI, SPI |
| Pbfree Code | no |
| Radiation Hardening | No |
| Max Power Dissipation | 1W |
| Terminal Position | QUAD |
| Terminal Form | J BEND |
| Supply Voltage | 5V |
| Base Part Number | 370C758 |
| Pin Count | 68 |
| Subcategory | Microcontrollers |
| Power Supplies | 5V |
| Supply Current-Max | 56mA |
| Memory Size | 32kB |
| Oscillator Type | Internal |
| Number of I/O | 55 |
| Memory Type | EPROM, OTP |
| Peripherals | PWM, WDT |
| RAM Size | 1K x 8 |
| Data Bus Width | 8b |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
| Bit Size | 8 |
| Has ADC | YES |
| DMA Channels | NO |
| PWM Channels | YES |
| DAC Channels | NO |
| Number of Timers/Counters | 2 |
| Number of Programmable I/O | 64 |
| Address Bus Width | 16 |
| Voltage - Supply (Vcc/Vdd) | 4.5V~5.5V |
| Program Memory Type | OTP |
| Core Size | 8-Bit |
| Program Memory Size | 32KB 32K x 8 |
| Connectivity | SCI, SPI |
| Data Converter | A/D 8x8b |
| EEPROM Size | 256 x 8 |
