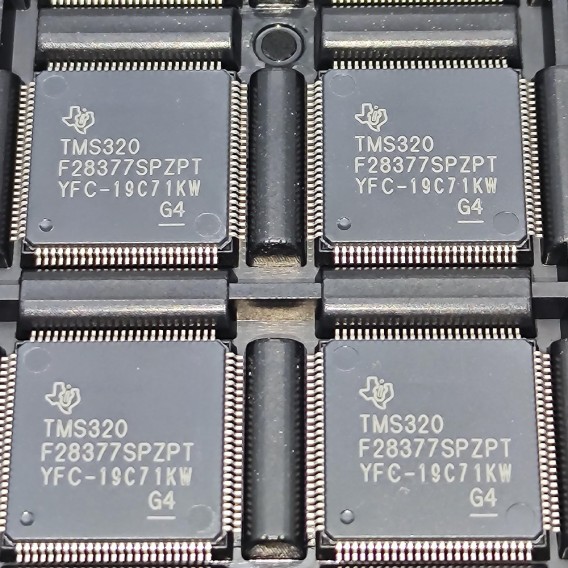

TMS320F28377SPZPT
1MB 512K x 16 FLASH C28x 32-Bit Single-Core Microcontroller C2000™ C28x Delfino™ Series 320F28377 100 Pin 200MHz 1.2V 100-PowerTQFP
- Manufacturer: Texas Instruments
- NO: 815-TMS320F28377SPZPT
- Package: 100-PowerTQFP
- Datasheet:
- Stock: 2971
- Description: 1MB 512K x 16 FLASH C28x 32-Bit Single-Core Microcontroller C2000™ C28x Delfino™ Series 320F28377 100 Pin 200MHz 1.2V 100-PowerTQFP (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Package / Case | 100-PowerTQFP |
| Length | 14mm |
| Height | 1.2mm |
| Width | 14mm |
| Lead Free | Lead Free |
| Number of Terminations | 100 |
| Factory Lead Time | 6 Weeks |
| Number of Pins | 100 |
| Interface | CAN, EBI/EMI, I2C, SCI, SPI, UART, USART, USB |
| Density | 8 Mb |
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| Pbfree Code | yes |
| Thickness | 1mm |
| ECCN Code | 3A991A2 |
| JESD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Surface Mount | YES |
| Terminal Position | QUAD |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 1.2V |
| Terminal Pitch | 0.5mm |
| Base Part Number | 320F28377 |
| Supply Voltage-Max (Vsup) | 1.26V |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Memory Size | 1MB |
| Oscillator Type | Internal |
| Number of I/O | 41 |
| Peripherals | DMA, POR, PWM, WDT |
| RAM Size | 82K x 16 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Bit Size | 32 |
| Has ADC | YES |
| DMA Channels | YES |
| PWM Channels | YES |
| DAC Channels | YES |
| CPU Family | TMS320 |
| Number of UART Channels | 4 |
| RAM (words) | 164 |
| Boundary Scan | YES |
| Low Power Mode | YES |
| Format | FLOATING-POINT |
| Integrated Cache | NO |
| Number of Serial I/Os | 5 |
| Number of Timers | 3 |
| Core Processor | C28x |
| Voltage - Supply (Vcc/Vdd) | 1.14V~3.47V |
| Program Memory Type | FLASH |
| Core Size | 32-Bit Single-Core |
| Program Memory Size | 1MB 512K x 16 |
| Connectivity | CANbus, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB |
| Data Converter | A/D 14x12b, 14x16b; D/A 3x12b |
| Part Status | Active |
| Series | C2000™ C28x Delfino™ |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C TJ |
| Packaging | Tray |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Technology | CMOS |
| Frequency | 200MHz |
| RoHS Status | ROHS3 Compliant |
TMS320F28377SPZPT Description
TMS320F28377SPZPT is a type of C2000? 32-bit floating-point microcontroller unit (MCU) with 400 MIPS designed for advanced closed-loop control applications. The DigitalPower software development kit (SDK) for C2000 MCUs and the MotorControl software development kit (SDK) for C2000? MCUs are available for the purpose of accelerating application development. It is integrated with up to 1MB (512KW) of onboard flash memory with error correction code (ECC) and up to 164KB (82KW) of SRAM.
TMS320F28377SPZPT Features
TMS320C28x 32-bit CPU
Package | Pins: HTQFP (PZP) | 100
Operating temperature range (°C): -40 to 105
Programmable control law accelerator (CLA)
1.2-V core, 3.3-V I/O design
Enhanced control peripherals
TMS320F28377SPZPT Applications
CNC control
Medium/short-range radar
Traction inverter motor control
Automated sorting equipment
AC charging (pile) station
EV charging station power module
HVAC large commercial motor control
