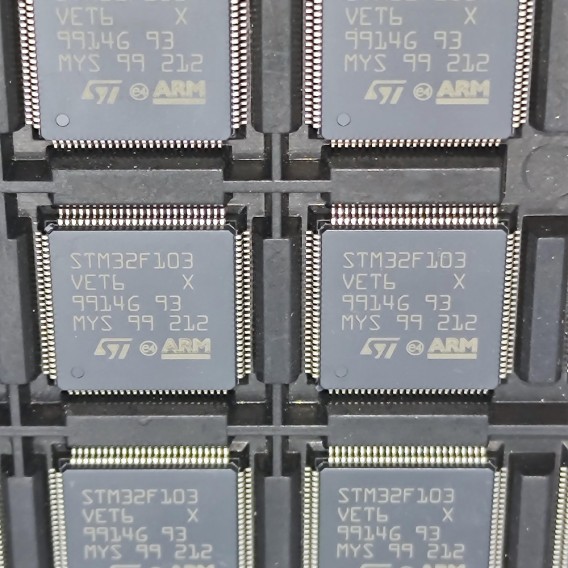

STM32F103VET6
512KB 512K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F1 Series STM32F103 100 Pin 72MHz 3.3V 100-LQFP
- Manufacturer: STMicroelectronics
- NO: 761-STM32F103VET6
- Package: 100-LQFP
- Datasheet:
- Stock: 3971
- Description: 512KB 512K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F1 Series STM32F103 100 Pin 72MHz 3.3V 100-LQFP (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | STM32F1 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tray |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Termination | SMD/SMT |
| Technology | CMOS |
| Frequency | 72MHz |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 100-LQFP |
| Length | 14mm |
| Height | 1.45mm |
| Width | 14.2mm |
| Lead Free | Lead Free |
| Number of Terminations | 100 |
| Factory Lead Time | 10 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 100 |
| Interface | CAN, I2C, I2S, IrDA, LIN, SDIO, SPI, UART, USART, USB |
| Density | 4 Mb |
| Lifecycle Status | ACTIVE (Last Updated: 6 months ago) |
| Radiation Hardening | No |
| JESD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Surface Mount | YES |
| Max Power Dissipation | 434mW |
| Terminal Position | QUAD |
| Terminal Form | GULL WING |
| Supply Voltage | 3.3V |
| Terminal Pitch | 0.5mm |
| Base Part Number | STM32F103 |
| Pin Count | 100 |
| Supply Voltage-Min (Vsup) | 2V |
| Subcategory | Microcontrollers |
| Supply Current-Max | 70mA |
| Memory Size | 512kB |
| Number of Bits | 32 |
| Number of ADC Channels | 16 |
| Oscillator Type | Internal |
| Number of I/O | 80 |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Core Architecture | ARM |
| RAM Size | 64K x 8 |
| Data Bus Width | 32b |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Bit Size | 32 |
| Has ADC | YES |
| DMA Channels | YES |
| PWM Channels | YES |
| Watchdog Timer | Yes |
| Number of Timers/Counters | 8 |
| Number of SPI Channels | 3 |
| Number of I2C Channels | 2 |
| Core Processor | ARM® Cortex®-M3 |
| Voltage - Supply (Vcc/Vdd) | 2V~3.6V |
| Program Memory Type | FLASH |
| Core Size | 32-Bit |
| Program Memory Size | 512KB 512K x 8 |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Data Converter | A/D 16x12b; D/A 2x12b |
The STM32F103VET6 medium-density MCU line family includes a high-performance ARM CortexTM-M3 32-bit RISC CPU running at 72 MHz, high-speed embedded storage (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and a wide range of upgraded I/Os and peripherals connected to two APB buses. All devices include two 12-bit ADCs, three general-purpose 16-bit timers plus one PWM timer, and conventional and sophisticated communication interfaces such as up to two I2Cs and SPIs, three USARTs, a USB, and a CAN.
STM32F103VET6 Features
Internal factory-trimmed RC of 8 MHz
Three 12-bit, one-second A/D converters (up to 21 channels)
2 D/A converters (12 bits)
Up to two I2C interfaces (SMBus/PMBus) are supported.
Interface CAN (2.0B Active)
2 motor control 16-bit PWM timers that generate dead time and have an emergency stop button
JTAG and serial wire debug (SWD) interfaces
Flash memory ranging from 256 to 512 Kbytes
STM32F103VET6 Applications
UPS
Industrial Applications
Alarm Systems
HVAC Systems
Printers
Power Inverters
Arduino IDE
Mediacal Equipment
PLCs
GPS
Sensors
