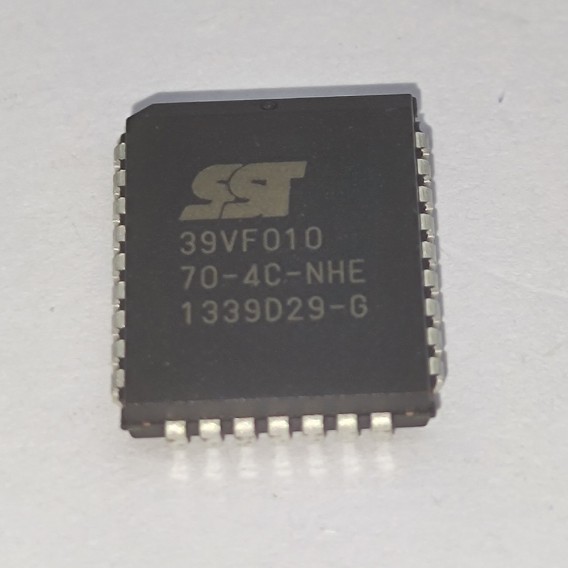

SST39VF010-70-4C-NHE
SST39 MPF™ 32 Pin Memory IC SST39 MPF™ Series SST39VF010 1 Mb kb 11.51mm mm 20mA mA 8b b
- Manufacturer: Microchip Technology
- NO: 536-SST39VF010-70-4C-NHE
- Package: 32-LCC (J-Lead)
- Datasheet:
- Stock: 4254
- Description: SST39 MPF™ 32 Pin Memory IC SST39 MPF™ Series SST39VF010 1 Mb kb 11.51mm mm 20mA mA 8b b (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | SST39 MPF™ |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C~70°C TA |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Termination | SMD/SMT |
| Technology | CMOS |
| RoHS Status | ROHS3 Compliant |
| Published | 2000 |
| Package / Case | 32-LCC (J-Lead) |
| Length | 11.51mm |
| Height | 2.84mm |
| Width | 14.05mm |
| Operating Supply Voltage | 3.3V |
| Lead Free | Lead Free |
| Max Supply Current | 20mA |
| Number of Terminations | 32 |
| Factory Lead Time | 7 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 32 |
| Density | 1 Mb |
| Pbfree Code | yes |
| ECCN Code | 3A991.B.1.A |
| Contact Plating | Tin |
| Radiation Hardening | No |
| Number of Functions | 1 |
| Nominal Supply Current | 20mA |
| JESD-609 Code | e3 |
| Surface Mount | YES |
| Voltage - Supply | 2.7V~3.6V |
| Terminal Position | QUAD |
| Peak Reflow Temperature (Cel) | 245 |
| Supply Voltage | 3V |
| Terminal Pitch | 1.27mm |
| Base Part Number | SST39VF010 |
| Pin Count | 32 |
| Supply Voltage-Max (Vsup) | 3.6V |
| Supply Voltage-Min (Vsup) | 2.7V |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Memory Size | 1Mb 128K x 8 |
| Memory Type | Non-Volatile |
| Data Bus Width | 8b |
| Access Time | 70ns |
| Programming Voltage | 2.7V |
| Address Bus Width | 17b |
| Memory Format | FLASH |
| Memory Interface | Parallel |
| Organization | 128KX8 |
| Write Cycle Time - Word, Page | 20μs |
| Standby Current-Max | 0.000015A |
| Word Size | 8b |
| Sync/Async | Asynchronous |
| Data Polling | YES |
| Toggle Bit | YES |
| Command User Interface | YES |
| Number of Sectors/Size | 32 |
| Sector Size | 4K |
