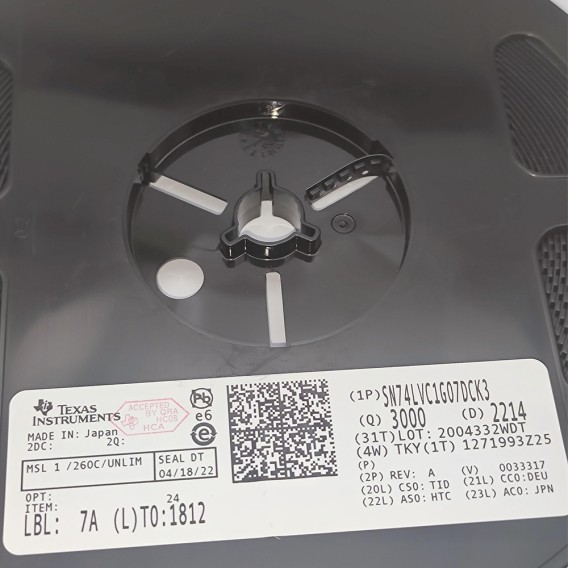

SN74LVC1G07DCK3
LOGIC GATE
- Manufacturer: Texas Instruments
- NO: 815-SN74LVC1G07DCK3
- Package: 5-TSSOP, SC-70-5, SOT-353
- Datasheet:
- Stock: 7471
- Description: LOGIC GATE(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | 74LVC |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C TA |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Technology | CMOS |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Length | 2mm |
| Height | 1.1mm |
| Width | 1.25mm |
| Number of Terminations | 5 |
| Factory Lead Time | 6 Weeks |
| Number of Pins | 5 |
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Pbfree Code | yes |
| Thickness | 900μm |
| Number of Functions | 1 |
| JESD-609 Code | e6 |
| Terminal Finish | Tin/Bismuth (Sn/Bi) |
| Surface Mount | YES |
| Voltage - Supply | 1.65V~5.5V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Supply Voltage | 3.3V |
| Base Part Number | 74LVC1G07 |
| Number of Elements | 1 |
| Family | LVC/LCX/Z |
| Output Type | Open Drain |
| Current - Output High, Low | - 32mA |
| Logic Type | Buffer, Non-Inverting |
| Max I(ol) | 0.032 A |
| Propagation Delay (tpd) | 8.6 ns |
