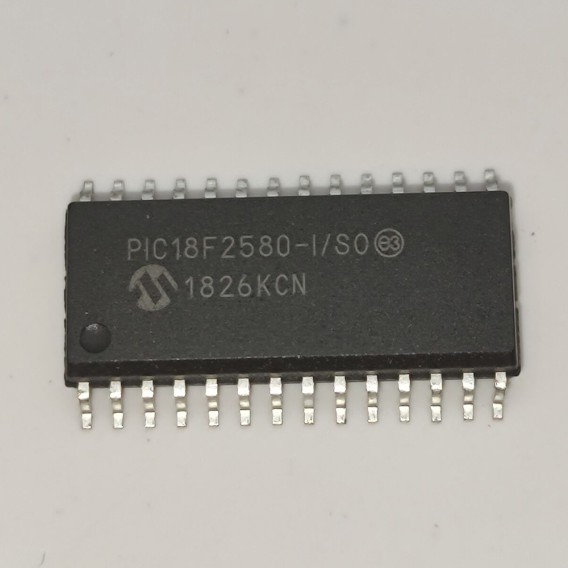

PIC18F2580-I/SO
32KB 16K x 16 FLASH PIC 8-Bit Microcontroller PIC® 18F Series PIC18F2580 28 Pin 40MHz 4.5V 28-SOIC (0.295, 7.50mm Width)
- Manufacturer: Microchip Technology
- NO: 536-PIC18F2580-I/SO
- Package: 28-SOIC (0.295, 7.50mm Width)
- Datasheet:
- Stock: 2390
- Description: 32KB 16K x 16 FLASH PIC 8-Bit Microcontroller PIC® 18F Series PIC18F2580 28 Pin 40MHz 4.5V 28-SOIC (0.295, 7.50mm Width) (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | PIC® 18F |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Technology | CMOS |
| Frequency | 40MHz |
| RoHS Status | ROHS3 Compliant |
| Published | 2004 |
| Package / Case | 28-SOIC (0.295, 7.50mm Width) |
| Length | 17.9mm |
| Height | 2.35mm |
| Width | 7.5mm |
| Lead Free | Lead Free |
| Number of Terminations | 28 |
| Factory Lead Time | 7 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 28 |
| Interface | CAN, I2C, SPI, UART, USART |
| Density | 256 kb |
| Pbfree Code | yes |
| Radiation Hardening | No |
| Nominal Supply Current | 2.3mA |
| JESD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) |
| Max Power Dissipation | 1W |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 250 |
| Supply Voltage | 4.5V |
| Base Part Number | PIC18F2580 |
| Pin Count | 28 |
| Supply Voltage-Max (Vsup) | 5.5V |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Subcategory | Microcontrollers |
| Power Supplies | 5V |
| Memory Size | 32kB |
| Number of ADC Channels | 8 |
| Oscillator Type | Internal |
| Number of I/O | 25 |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| RAM Size | 1.5K x 8 |
| Data Bus Width | 8b |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
| Bit Size | 8 |
| Has ADC | YES |
| DMA Channels | NO |
| Watchdog Timer | Yes |
| Number of Timers/Counters | 4 |
| CPU Family | PIC |
| Number of PWM Channels | 1 |
| Access Time | 40 μs |
| Address Bus Width | 8b |
| Core Processor | PIC |
| Voltage - Supply (Vcc/Vdd) | 4.2V~5.5V |
| Program Memory Type | FLASH |
| Core Size | 8-Bit |
| Program Memory Size | 32KB 16K x 16 |
| Connectivity | CANbus, I2C, SPI, UART/USART |
| Data Converter | A/D 8x10b |
| EEPROM Size | 256 x 8 |
PIC18F2580-I/SO Overview
This Microcontroller comes in a 28-SOIC (0.295, 7.50mm Width) package. There are 25 I/Os on the Microcontroller. In the case of the IC chip, the type of mounting is Surface Mount. 8-Bit core is the basis for this Microcontroller. There is a memory type of FLASH in its program memory. There is a temperature range of -40°C~85°C TA for this Microcontroller. The PIC® 18F series includes this electrical component. In the case of this Microcontroller, the memory size of the program is 32KB 16K x 16. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. There are 28 terminations on the IC chip, which means there are 28 terminations on the integrated circuit chip. The part works on a 8-bit basis. Input voltage for the chip is 4.5V volts. Currently, MCU chip has NO DMA channels. The part has a memory size of 32kB. It is possible to find alternatives to the base part number PIC18F2580 by using the part number search tool. It exhibits good efficiency when it operates at a frequency of 40MHz and it is able to operate at a high frequency. Located on the chip are 28 pins. A total of 4 timers/counters are included in the package. It consists of 28 pins. The PIC CPU family is embedded in the device, so it can handle a wide range of operations. A total of 8 channels of ADC are available on this device. In order for the device to function, it uses 1 PWM channels.
PIC18F2580-I/SO Features
28-SOIC (0.295, 7.50mm Width) package
Mounting type of Surface Mount
Microcontrollers subcategory
PIC18F2580-I/SO Applications
There are a lot of Microchip Technology PIC18F2580-I/SO Microcontroller applications.
- Equipment control
- Accu-check
- Leakage current tester
- DDC control
- Air fryers
- Process control devices
- Laptops
- Coffee machines
- Heater/Fan
- Gas monitoring systems
