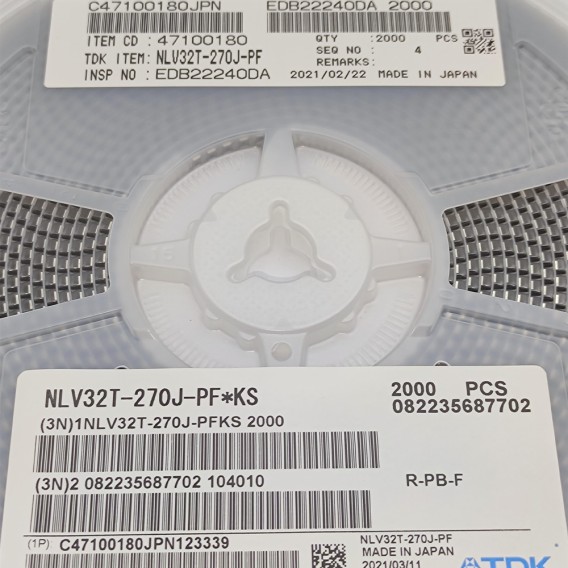

NLV32T-270J-PF
FIXED IND 27UH 80MA 5 OHM SMD
- Manufacturer: TDK Corporation
- NO: 769-NLV32T-270J-PF
- Package: 1210 (3225 Metric)
- Datasheet:
- Stock: 1971
- Description: FIXED IND 27UH 80MA 5 OHM SMD(Kg)
