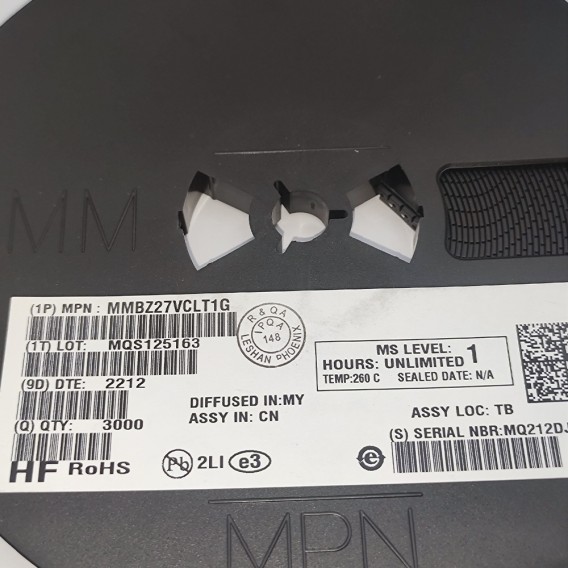

MMBZ27VCLT1G
TVS DIODE 22V 38V SOT23-3
- Manufacturer: ON Semiconductor
- NO: 598-MMBZ27VCLT1G
- Package: TO-236-3, SC-59, SOT-23-3
- Datasheet:
- Stock: 6190
- Description: TVS DIODE 22V 38V SOT23-3(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Direction | Bidirectional |
| Part Status | Active |
| Type | Zener |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C TJ |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | SMD/SMT |
| RoHS Status | ROHS3 Compliant |
| Published | 2005 |
| Voltage - Rated DC | 27V |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Length | 2.9mm |
| Height | 940μm |
| Width | 1.3mm |
| Operating Supply Voltage | 22V |
| Lead Free | Lead Free |
| Depth | 1.3mm |
| Number of Terminations | 3 |
| Factory Lead Time | 4 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 3 |
| Lifecycle Status | ACTIVE (Last Updated: 6 days ago) |
| Pbfree Code | yes |
| ECCN Code | EAR99 |
| Additional Feature | UL RECOGNIZED |
| Contact Plating | Tin |
| HTS Code | 8541.10.00.50 |
| Power Rating | 40W |
| JESD-609 Code | e3 |
| Applications | General Purpose |
| Polarity | Unidirectional |
| Surface Mount | YES |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Base Part Number | MMBZ*V |
| Pin Count | 3 |
| Element Configuration | Common Cathode |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Power Dissipation | 40W |
| Number of Elements | 2 |
| Subcategory | Transient Suppressors |
| Leakage Current | 50nA |
| Max Surge Current | 1A |
| Max Reverse Leakage Current | 50nA |
| Working Voltage | 22V |
| Test Current | 1mA |
| Breakdown Voltage | 16V |
| Diode Element Material | SILICON |
| Power Line Protection | No |
| Unidirectional Channels | 2 |
| Clamping Voltage | 38V |
| Peak Pulse Current | 1A |
| Reverse Standoff Voltage | 22V |
| Peak Pulse Power | 40W |
| Reverse Breakdown Voltage | 25.65V |
| Max Breakdown Voltage | 28.35V |
| ESD Protection | Yes |
