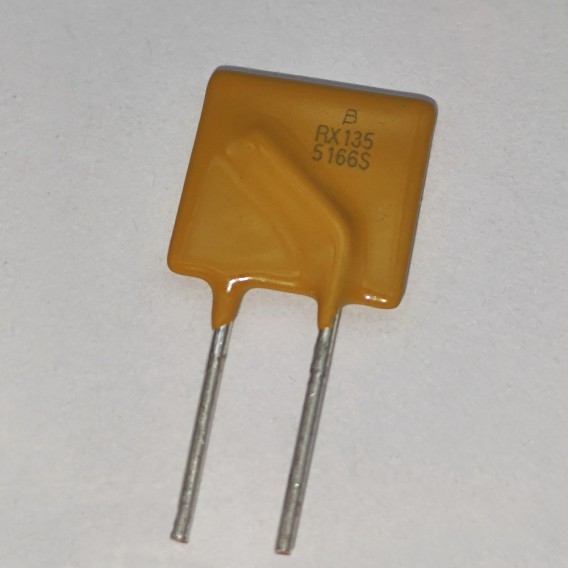

MF-RX135/72-0
PTC RESET FUSE 72V 1.35A RADIAL
- Manufacturer: Bourns Inc.
- NO: 103-MF-RX135/72-0
- Package: Radial, Disc
- Datasheet:
- Stock: 7635
- Description: PTC RESET FUSE 72V 1.35A RADIAL(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Voltage - Rated DC | 72V |
| Current Rating | 40A |
| Package / Case | Radial, Disc |
| Height | 3.1mm |
| Voltage - Rated AC | 60V |
| Operating Supply Voltage | 72V |
| Lead Free | Lead Free |
| Number of Terminations | 2 |
| Factory Lead Time | 7 Weeks |
| Approval Agency | cURus, TUV |
| REACH SVHC | No SVHC |
| Resistance | 190mOhm |
| Lead Pitch | 5.1mm |
| Pbfree Code | yes |
| Thickness | 3.1mm |
| Flammability Rating | UL94 V-0 |
| ECCN Code | EAR99 |
| Radiation Hardening | No |
| Lead Length | 7.6mm |
| HTS Code | 8533.40.80.70 |
| Max Current Rating | 40A |
| Terminal Shape | WIRE |
| JESD-609 Code | e3 |
| Terminal Finish | Tin (Sn) |
| Lead Diameter | 810 μm |
| Base Part Number | MF-RX |
| Power Dissipation | 1.7W |
| Lead Spacing | 0.201 5.10mm |
| Body Material | Polymer |
| Wire/Cable Diameter | 810 μm |
| Hold Current | 1.35A |
| Trip Current | 2.7A |
| Thermistor Application | OVERLOAD PROTECTION |
| Time to Trip | 9.6s |
| Resistance - Initial (Ri) (Min) | 120mOhm |
| Resistance - Post Trip (R1) (Max) | 300mOhm |
| Current - Hold (Ih) (Max) | 1.35A |
| Part Status | Active |
| Type | Polymeric |
| Series | Multifuse®, MF-RX/72 |
| Mount | PCB, Through Hole |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Packaging | Bulk |
| Size / Dimension | 0.483Lx0.122W 12.26mmx3.10mm |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Radial |
| Height Seated (Max) | 0.718 18.26mm |
| RoHS Status | ROHS3 Compliant |
| Published | 2008 |
