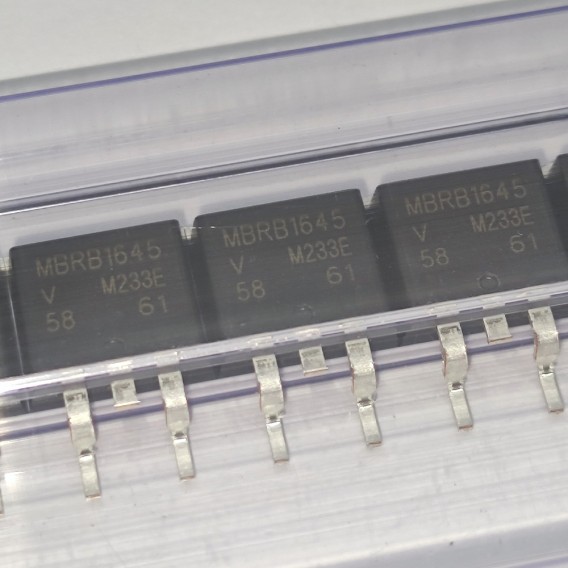

MBRB1645T4G
MBRB1645T4G datasheet pdf and Diodes - Rectifiers - Single product details from ON Semiconductor stock available at Feilidi
- Manufacturer: ON Semiconductor
- NO: 598-MBRB1645T4G
- Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
- Datasheet:
- Stock: 3471
- Description: MBRB1645T4G datasheet pdf and Diodes - Rectifiers - Single product details from ON Semiconductor stock available at Feilidi (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | SWITCHMODE™ |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| RoHS Status | ROHS3 Compliant |
| Published | 2008 |
| Voltage - Rated DC | 45V |
| Current Rating | 16A |
| Package / Case | TO-263-3, D2Pak (2 Leads + Tab), TO-263AB |
| Length | 10.29mm |
| Height | 4.83mm |
| Width | 9.65mm |
| Lead Free | Lead Free |
| Number of Terminations | 2 |
| Factory Lead Time | 4 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 3 |
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| Pbfree Code | yes |
| ECCN Code | EAR99 |
| Contact Plating | Tin |
| Radiation Hardening | No |
| HTS Code | 8541.10.00.80 |
| JESD-609 Code | e3 |
| Polarity | Standard |
| Halogen Free | Halogen Free |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Base Part Number | MBRB1645 |
| Pin Count | 3 |
| Element Configuration | Single |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Number of Elements | 1 |
| Subcategory | Rectifier Diodes |
| JESD-30 Code | R-PSSO-G2 |
| Output Current | 16A |
| Forward Current | 16A |
| Forward Voltage | 630mV |
| Max Surge Current | 150A |
| Max Reverse Leakage Current | 200μA |
| Case Connection | CATHODE |
| Application | POWER |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Diode Element Material | SILICON |
| Max Forward Surge Current (Ifsm) | 150A |
| Peak Reverse Current | 200μA |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Peak Non-Repetitive Surge Current | 150A |
| Diode Type | Schottky |
| Max Reverse Voltage (DC) | 45V |
| Average Rectified Current | 16A |
| Number of Phases | 1 |
| Current - Reverse Leakage @ Vr | 200μA @ 45V |
| Voltage - Forward (Vf) (Max) @ If | 630mV @ 16A |
| Operating Temperature - Junction | -65°C~175°C |
