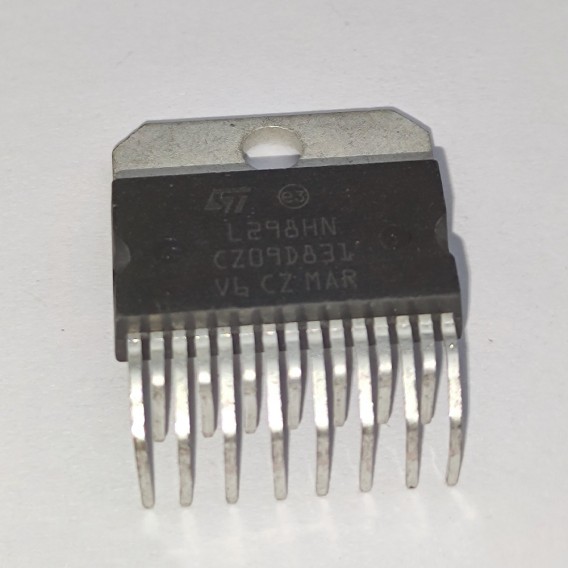

L298HN
L298HN datasheet pdf and PMIC - Full, Half-Bridge Drivers product details from STMicroelectronics stock available at Feilidi
- Manufacturer: STMicroelectronics
- NO: 761-L298HN
- Package: Multiwatt-15 (Horizontal, Bent and Staggered Leads)
- Datasheet:
- Stock: 8046
- Description: L298HN datasheet pdf and PMIC - Full, Half-Bridge Drivers product details from STMicroelectronics stock available at Feilidi(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~150°C TJ |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Technology | Bipolar |
| Operating Supply Current | 13mA |
| RoHS Status | ROHS3 Compliant |
| Package / Case | Multiwatt-15 (Horizontal, Bent and Staggered Leads) |
| Length | 19.6mm |
| Height | 5mm |
| Width | 17.75mm |
| Operating Supply Voltage | 42V |
| Lead Free | Lead Free |
| Number of Terminations | 8 |
| Factory Lead Time | 10 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 15 |
| Interface | Logic |
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) |
| ECCN Code | EAR99 |
| Radiation Hardening | No |
| Number of Functions | 2 |
| JESD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Applications | DC Motors, Relays, Solenoids, Stepper Motors |
| Voltage - Supply | 4.5V~7V |
| Terminal Position | DUAL |
| Supply Voltage | 5V |
| Base Part Number | L298 |
| Pin Count | 15 |
| Number of Channels | 4 |
| Power Dissipation | 25W |
| Output Polarity | TRUE |
| Max Output Current | 3A |
| Input Characteristics | STANDARD |
| Output Voltage | 46V |
| Output Current | 2A |
| Voltage - Load | 4.8V~46V |
| Output Configuration | Half Bridge (4) |
| Fault Protection | Current Limiting, Over Temperature |
| Built-in Protections | OVER CURRENT |
| Collector Emitter Voltage (VCEO) | 46V |
| Max Collector Current | 3A |
| Output Current per Channel | 2A |
| Supply Voltage1-Nom | 42V |
| Output Characteristics | TOTEM-POLE |
| Motor Type | Brushed |
| Load Type | Inductive |
L298HN Description
The L298HN is a monolithic integrated circuit with 15 leads available in Multiwatt and PowerSO20 packages. L298HN is a high-voltage, high-current twin full-bridge driver that can handle typical TTL logic levels and drive inductive loads including relays, solenoids, DC motors, and stepping motors.
L298HN Features
Driver Model: L298N 2A
Driver Chip: Double H Bridge L298N
Motor Supply Voltage (Maximum): 46V
Motor Supply Current (Maximum): 2A
Logic Voltage: 5V
Driver Voltage: 5-35V
Driver Current:2A
Logical Current:0-36mA
Maximum Power (W): 25W
Current Sense for each motor
Heatsink for better performance
Power-On LED indicator
L298HN Applications
Drive DC motors.
Drive stepping motors
In Robotics
