DSPIC30F6014A-30I/PF

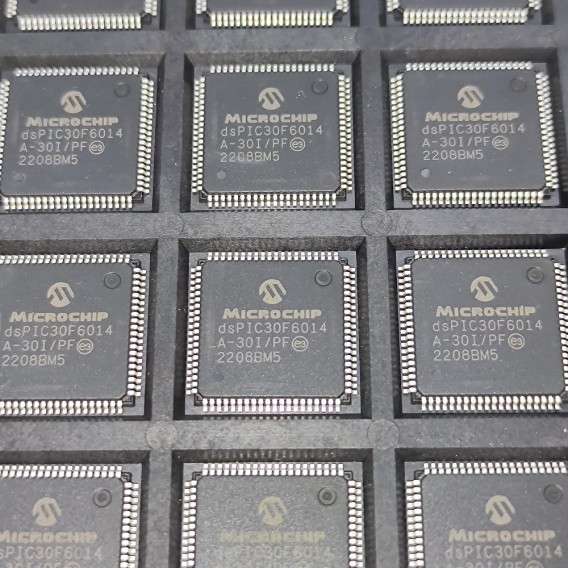

144KB 48K x 24 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 30F Series DSPIC30F6014A 80 Pin 30MHz 5V 80-TQFP
- Manufacturer: Microchip Technology
- NO: 536-DSPIC30F6014A-30I/PF
- Package: 80-TQFP
- Datasheet:
- Stock: 4656
- Description: 144KB 48K x 24 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 30F Series DSPIC30F6014A 80 Pin 30MHz 5V 80-TQFP (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Core Processor | dsPIC |
| Voltage - Supply (Vcc/Vdd) | 2.5V~5.5V |
| Program Memory Type | FLASH |
| Core Size | 16-Bit |
| Program Memory Size | 144KB 48K x 24 |
| Connectivity | CANbus, I2C, SPI, UART/USART |
| Data Converter | A/D 16x12b |
| EEPROM Size | 4K x 8 |
| Part Status | Active |
| Series | dsPIC™ 30F |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tray |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Termination | SMD/SMT |
| Technology | CMOS |
| Frequency | 30MHz |
| RoHS Status | ROHS3 Compliant |
| Published | 2004 |
| Package / Case | 80-TQFP |
| Length | 14mm |
| Height | 1.05mm |
| Width | 14mm |
| Operating Supply Voltage | 5V |
| Lead Free | Lead Free |
| Number of Terminations | 80 |
| Factory Lead Time | 6 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 80 |
| Lead Pitch | 650μm |
| Interface | CAN, I2C, SPI, UART, USART |
| Density | 1.1 Mb |
| Pbfree Code | yes |
| Radiation Hardening | No |
| JESD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Position | QUAD |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 5V |
| Base Part Number | DSPIC30F6014A |
| Pin Count | 80 |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Subcategory | Digital Signal Processors |
| Memory Size | 144kB |
| Number of ADC Channels | 16 |
| Oscillator Type | Internal |
| Number of I/O | 68 |
| Peripherals | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT |
| RAM Size | 8K x 8 |
| Data Bus Width | 16b |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Bit Size | 16 |
| Has ADC | YES |
| DMA Channels | NO |
| Watchdog Timer | Yes |
| Number of Timers/Counters | 5 |
| Number of SPI Channels | 2 |
| Format | FIXED-POINT |
| Number of A/D Converters | 1 |
| Number of PWM Channels | 8 |
DSPIC30F6014A-30I/PF Overview
The package is in 80-TQFP format. 68 I/Os are available. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. There is a 16-Bit core at the core of this MCU. As far as its program memory type is concerned, it is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. dsPIC™ 30F series components belong to this electrical component. This program has a program memory of 144KB 48K x 24 bytes, which is the size of the program. There is a dsPIC Core Processor inside MCU that provides this device with its power. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 80 terminals. 16-bits are used in Microcontroller. There is an output of 5V volts from the Microcontroller chip. A total of NO DMA channels are available on MCU chip. 144kB memory size belongs to the Chip part. Alternatives can be found by searching through the base part number DSPIC30F6014A to find them. In the case of 30MHz frequency operation, it can perform efficiently. It is possible to access the 80 pins on the chip through the 80 pins. Using the timer/counter system, it has 5 timers/counters. The pin count is 80. The ADC channel count on this device totals up to 16 channels. The device contains 1 A/D converters. The device uses 8 PWM channels.
DSPIC30F6014A-30I/PF Features
80-TQFP package
Mounting type of Surface Mount
Digital Signal Processors subcategory
DSPIC30F6014A-30I/PF Applications
There are a lot of Microchip Technology DSPIC30F6014A-30I/PF Microcontroller applications.
- Fax machines
- Tape drives
- Oil and gas
- Scanners
- Electrocardiogram (EKG)
- Mobile computers
- Air fryers
- Paper shredders
- Toys
- Home appliances
