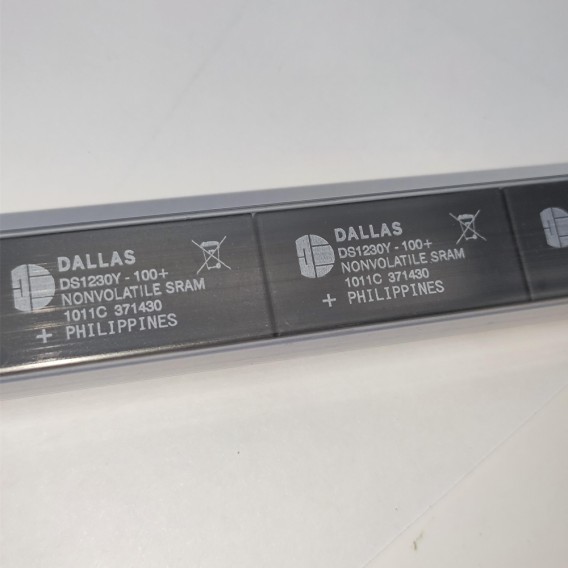

DS1230Y-100+
5V V 28 Pin Memory IC DS1230Y
- Manufacturer: Maxim Integrated
- NO: 503-DS1230Y-100+
- Package: 28-DIP Module (0.600, 15.24mm)
- Datasheet:
- Stock: 197
- Description: 5V V 28 Pin Memory IC DS1230Y (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C TA |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Operating Mode | ASYNCHRONOUS |
| RoHS Status | ROHS3 Compliant |
| Published | 2002 |
| Package / Case | 28-DIP Module (0.600, 15.24mm) |
| Lead Free | Lead Free |
| Number of Terminations | 28 |
| Factory Lead Time | 6 Weeks |
| Number of Pins | 28 |
| Pbfree Code | yes |
| ECCN Code | EAR99 |
| Reach Compliance Code | not_compliant |
| HTS Code | 8473.30.11.40 |
| Number of Functions | 1 |
| JESD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) |
| Surface Mount | NO |
| Voltage - Supply | 4.5V~5.5V |
| Terminal Position | DUAL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Supply Voltage | 5V |
| Terminal Pitch | 2.54mm |
| Base Part Number | DS1230Y |
| Pin Count | 28 |
| Supply Voltage-Max (Vsup) | 5.5V |
| Supply Voltage-Min (Vsup) | 4.5V |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Subcategory | SRAMs |
| Power Supplies | 5V |
| Supply Current-Max | 0.085mA |
| Qualification Status | Not Qualified |
| Memory Size | 256Kb 32K x 8 |
| Memory Type | Non-Volatile |
| Memory Format | NVSRAM |
| Memory Interface | Parallel |
| Organization | 32KX8 |
| Memory Width | 8 |
| Write Cycle Time - Word, Page | 100ns |
| Memory Density | 262144 bit |
| Standby Current-Max | 0.0006A |
| Access Time (Max) | 100 ns |
