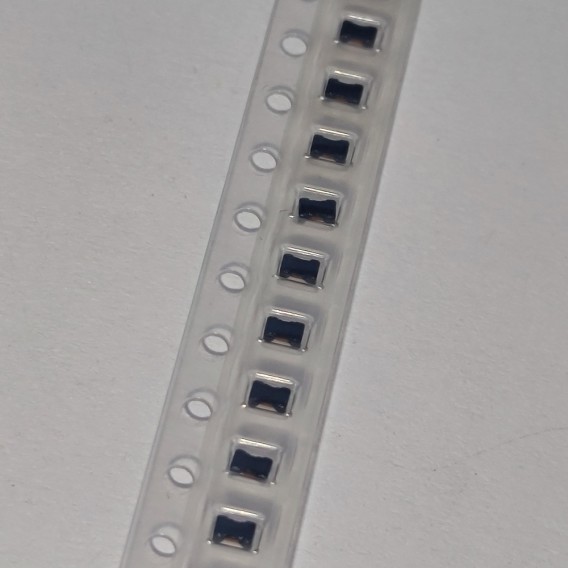

DLW21HN121SQ2L
Ind Common Mode Choke Wirewound 120Ohm 25% 100MHz 280mA 0805 Embossed T/R
- Manufacturer: Murata Electronics
- NO: 535-DLW21HN121SQ2L
- Package: Horizontal, 4 PC Pad
- Datasheet:
- Stock: 10016
- Description: Ind Common Mode Choke Wirewound 120Ohm 25% 100MHz 280mA 0805 Embossed T/R(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | DLW21 |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Packaging | Tape & Reel (TR) |
| Size / Dimension | 0.079Lx0.047W 2.00mmx1.20mm |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | SMD/SMT |
| Voltage - Rated | 50V |
| Frequency | 100MHz |
| RoHS Status | ROHS3 Compliant |
| Current Rating | 280mA |
| Package / Case | Horizontal, 4 PC Pad |
| Height | 900μm |
| Lead Free | Lead Free |
| Depth | 1.4mm |
| Factory Lead Time | 10 Weeks |
| Weight | 8.986799mg |
| Resistance | 120Ohm |
| Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
| Pbfree Code | yes |
| Impedance | 120Ohm |
| ECCN Code | EAR99 |
| Additional Feature | OPEN MAGNETIC ONE CIRCUIT TYPE |
| Radiation Hardening | No |
| Current | 280mA |
| HTS Code | 8504.50.80.00 |
| Packing Method | TAPE AND REEL |
| Number of Functions | 2 |
| Filter Type | Signal Line |
| Tolerance | 25% |
| JESD-609 Code | e3 |
| Terminal Finish | Tin (Sn) |
| Case Code (Imperial) | 0805 |
| Composition | Wirewound |
| Test Frequency | 100MHz |
| DC Resistance (DCR) (Max) | 450mOhm |
| Military Standard | Not |
| Shielding | Unshielded |
| Max DC Current | 280mA |
| Number of Lines | 2 |
| Impedance @ Frequency | 120Ohm @ 100MHz |
| DC Current | 280mA |
