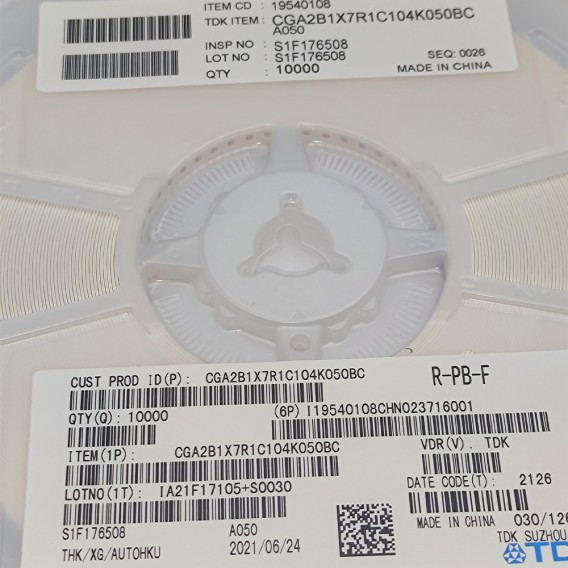

CGA2B1X7R1C104K050BC
CGA2B1X7R1C104K050BC datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available at Feilidi
- Manufacturer: TDK Corporation
- NO: 769-CGA2B1X7R1C104K050BC
- Package: 0402 (1005 Metric)
- Datasheet:
- Stock: 6010
- Description: CGA2B1X7R1C104K050BC datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available at Feilidi(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | CGA |
| Mount | Surface Mount |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C~125°C |
| Packaging | Tape & Reel (TR) |
| Size / Dimension | 0.039Lx0.020W 1.00mmx0.50mm |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | SMD/SMT |
| RoHS Status | ROHS3 Compliant |
| Published | 2001 |
| Voltage - Rated DC | 16V |
| Package / Case | 0402 (1005 Metric) |
| Capacitance | 0.1μF |
| Length | 1mm |
| Height | 500μm |
| Width | 0.5mm |
| Lead Free | Lead Free |
| Depth | 500μm |
| Number of Terminations | 2 |
| Factory Lead Time | 12 Weeks |
| Weight | 652.039032μg |
| Ratings | AEC-Q200 |
| REACH SVHC | No SVHC |
| Lifecycle Status | PRODUCTION (Last Updated: 1 month ago) |
| Pbfree Code | yes |
| Thickness | 558.8μm |
| ECCN Code | EAR99 |
| HTS Code | 8532.24.00.20 |
| Packing Method | TR, 7 INCH |
| Terminal Shape | WRAPAROUND |
| Tolerance | ±10% |
| JESD-609 Code | e3 |
| Temperature Coefficient | X7R |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Applications | Automotive |
| Temperature Characteristics Code | X7R |
| Multilayer | Yes |
| Thickness (Max) | 0.022 0.55mm |
| Case Code (Metric) | 1005 |
| Case Code (Imperial) | 0402 |
| Composition | Ceramic |
CGA2B1X7R1C104K050BC Overview
In the case of this device, the size/dimension of the program is 0.039Lx0.020W 1.00mmx0.50mm.The temperature coefficient of resistance is generally defined as?the change in electrical resistance of a substance with respect to per degree change in temperature, and its coefficient is X7R.The unit can operate at 16V Volts DC - Rated DC.
CGA2B1X7R1C104K050BC Features
a size/dimension of 0.039Lx0.020W 1.00mmx0.50mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 16V
CGA2B1X7R1C104K050BC Applications
There are a lot of TDK Corporation CGA2B1X7R1C104K050BC applications of ceramic capacitors.
- Servers, PCs, tablets
- Mobile devices
- General electronic equipment
- Power supply circuit
