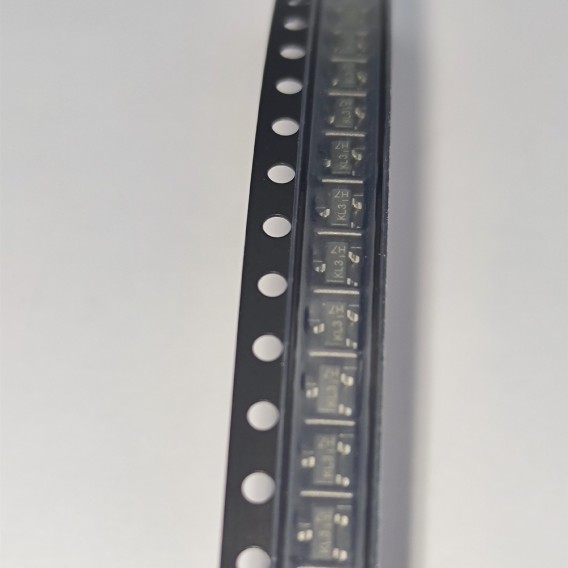

BAT54C-7-F
BAT54C-7-F datasheet pdf and Diodes - Rectifiers - Arrays product details from Diodes Incorporated stock available at Utmel
- Manufacturer: Diodes Incorporated
- NO: 233-BAT54C-7-F
- Package: TO-236-3, SC-59, SOT-23-3
- Datasheet:
- Stock: 7102
- Description: BAT54C-7-F datasheet pdf and Diodes - Rectifiers - Arrays product details from Diodes Incorporated stock available at Utmel(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | SMD/SMT |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| RoHS Status | ROHS3 Compliant |
| Published | 2005 |
| Voltage - Rated DC | 30V |
| Current Rating | 200mA |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Capacitance | 10pF |
| Length | 2.9mm |
| Height | 1mm |
| Width | 1.3mm |
| Lead Free | Lead Free |
| Number of Terminations | 3 |
| Factory Lead Time | 15 Weeks |
| Weight | 7.994566mg |
| REACH SVHC | No SVHC |
| Number of Pins | 3 |
| Pbfree Code | yes |
| ECCN Code | EAR99 |
| Additional Feature | HIGH RELIABILITY |
| Contact Plating | Tin |
| Radiation Hardening | No |
| HTS Code | 8541.10.00.70 |
| Power Rating | 200mW |
| JESD-609 Code | e3 |
| Max Power Dissipation | 200mW |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Base Part Number | BAT54C |
| Pin Count | 3 |
| Element Configuration | Common Cathode |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Power Dissipation | 200mW |
| Number of Elements | 2 |
| Subcategory | Rectifier Diodes |
| Forward Current | 100mA |
| Forward Voltage | 800mV |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Diode Element Material | SILICON |
| Max Forward Surge Current (Ifsm) | 600mA |
| Peak Reverse Current | 2μA |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Peak Non-Repetitive Surge Current | 600mA |
| Reverse Recovery Time | 5 ns |
| Diode Type | Schottky |
| Max Reverse Voltage (DC) | 30V |
| Average Rectified Current | 200mA |
| Output Current-Max | 0.2A |
| Current - Reverse Leakage @ Vr | 2μA @ 25V |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
| Current - Average Rectified (Io) | 200mA DC |
| Operating Temperature - Junction | -65°C~150°C |
| Diode Configuration | 1 Pair Common Cathode |
BAT54C-7-F Overview
This device will operate when the forward voltage is set to 800mV.0.2A is the maximum output voltage array can support.This device will operate when the forward voltage is set to 100mA.There can be a current drawn from this part of 200mA.The device is capacitance-limited to approximately 10pF farads.Array is powered by a reverse voltage peak of 2μA.As a derivative of its primary action, this electronic or electrical device generates 200mW of heat.There are no other devices in the electrical or electronic world that produce more 200mW heat (energy loss).
BAT54C-7-F Features
800mV forward voltage
a maximum output voltage of 0.2A
10pF farads
a peak voltage of 2μA
a reverse voltage peak of 2μA
BAT54C-7-F Applications
There are a lot of Diodes Incorporated BAT54C-7-F applications of rectifier diode array.
- General Rectification
- Battery chargers
- Crowbar applications
- Rectifier for drives applications
- Rectifiers in switch mode power supplies (SMPS)
- Rectifiers for UBS
- Free wheeling diode in low voltage converters
