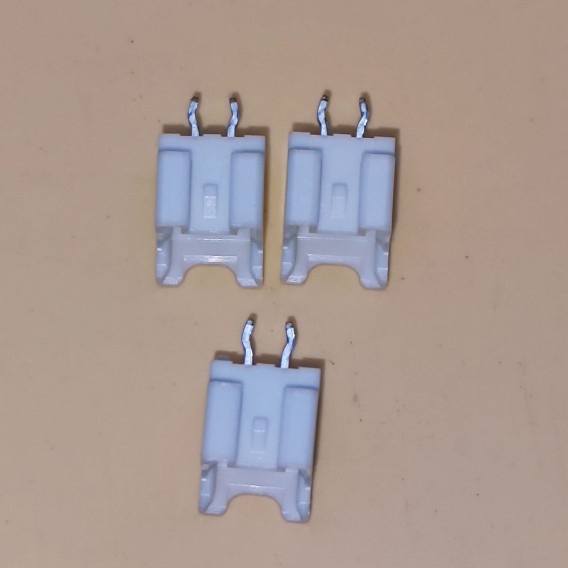

B02B-PASK-1
PA Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin-Lead Polybutylene Terephthalate (PBT), Glass Filled 2-Position Board to Cable/Wire 0.303 7.70mm Height
- Manufacturer: JST Sales America Inc.
- NO: 385-B02B-PASK-1
- Package: -
- Datasheet:
- Stock: 6224
- Description: PA Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin-Lead Polybutylene Terephthalate (PBT), Glass Filled 2-Position Board to Cable/Wire 0.303 7.70mm Height (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Obsolete |
| Series | PA |
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C~85°C |
| Packaging | Bulk |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Kinked Pin, Solder |
| Voltage - Rated | 250V |
| RoHS Status | Non-RoHS Compliant |
| Published | 2005 |
| Lead Free | Contains Lead |
| REACH SVHC | No SVHC |
| Pbfree Code | no |
| Connector Type | Header |
| Number of Positions | 2 |
| Gender | Male |
| MIL Conformance | NO |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Filter Feature | NO |
| Mixed Contacts | NO |
| Option | GENERAL PURPOSE |
| Housing Color | White |
| Contact Finish - Mating | Tin-Lead |
| ECCN Code | EAR99 |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Housing Material | Nylon |
| HTS Code | 8536.69.40.40 |
| JESD-609 Code | e0 |
| Feature | Board Guide |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Current Rating (Amps) | 3A |
| UL Flammability Code | 94V-0 |
| Shrouding | Shrouded - 4 Wall |
| Fastening Type | Locking Ramp |
| Material Flammability Rating | UL94 V-0 |
| Contact Shape | Square |
| Insulation Color | Natural |
| Contact Type | Male Pin |
| Number of Positions Loaded | All |
| Stack Height (Mating) | 9.9mm 14.7mm 14.9mm |
| Pitch - Mating | 0.079 2.00mm |
| Insulation Height | 0.303 7.70mm |
| Contact Length - Post | 0.118 3.00mm |
| Contact Length - Mating | 0.126 3.20mm |
| Overall Contact Length | 0.319 8.10mm |
