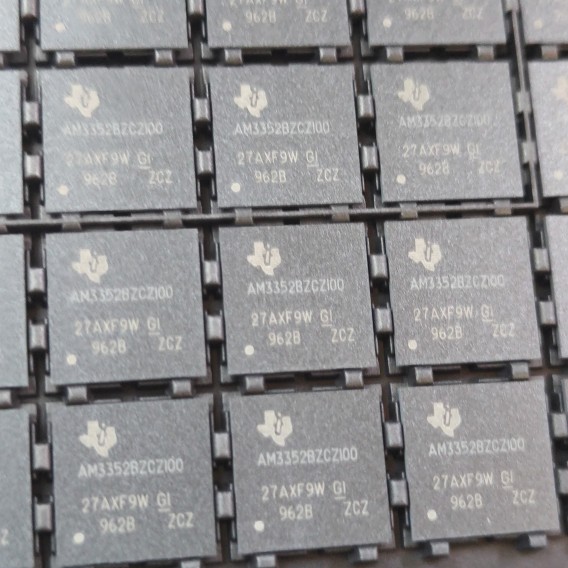

AM3352BZCZ100
0.8mm ARM? Cortex?-A8 32-bit Microprocessor Sitara? Series AM3352 324-Pin 1GHz 1.325V 324-LFBGA
- Manufacturer: Texas Instruments
- NO: 815-AM3352BZCZ100
- Package: 324-LFBGA
- Datasheet:
- Stock: 2981
- Description: 0.8mm ARM? Cortex?-A8 32-bit Microprocessor Sitara? Series AM3352 324-Pin 1GHz 1.325V 324-LFBGA (Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | Sitara™ |
| Operating Temperature | 0°C~90°C TJ |
| Packaging | Tray |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Technology | CMOS |
| Frequency | 1GHz |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 324-LFBGA |
| Length | 15mm |
| Height | 1.4mm |
| Width | 15mm |
| Lead Free | Lead Free |
| Number of Terminations | 324 |
| Factory Lead Time | 6 Weeks |
| Weight | 1.713814g |
| REACH SVHC | No SVHC |
| Max Supply Voltage | 1.378V |
| Min Supply Voltage | 912mV |
| Number of Pins | 324 |
| Interface | CAN, Ethernet, I2C, SPI, UART, USB |
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| Pbfree Code | yes |
| Thickness | 900μm |
| ECCN Code | 5A992.C |
| Contact Plating | Copper, Silver, Tin |
| Radiation Hardening | No |
| JESD-609 Code | e1 |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Voltage | 1.144V |
| Surface Mount | YES |
| Terminal Position | BOTTOM |
| Terminal Form | BALL |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 1.325V |
| Terminal Pitch | 0.8mm |
| Base Part Number | AM3352 |
| Subcategory | Microprocessors |
| Supply Current-Max | 400mA |
| Memory Type | Cache, RAM, ROM |
| Core Architecture | ARM |
| RAM Size | 64kB |
| Data Bus Width | 32b |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR, RISC |
| Bit Size | 32 |
| Number of UART Channels | 6 |
| Boundary Scan | YES |
| Low Power Mode | YES |
| Format | FIXED POINT |
| Integrated Cache | YES |
| Number of Cores | 1 |
| USB | USB 2.0 + PHY (2) |
| Core Processor | ARM® Cortex®-A8 |
| Voltage - I/O | 1.8V 3.3V |
| Ethernet | 10/100/1000Mbps (2) |
| Number of Cores/Bus Width | 1 Core 32-Bit |
| Graphics Acceleration | Yes |
| RAM Controllers | LPDDR, DDR2, DDR3, DDR3L |
| Additional Interfaces | CAN, I2C, McASP, McSPI, MMC/SD/SDIO, UART |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| Security Features | Cryptography, Random Number Generator |
| Display & Interface Controllers | LCD, Touchscreen |
AM3352BZCZ100 Description
The AM3352BZCZ100 microprocessor, based on the ARM Cortex-A8 processor, is enhanced with image, graphics processing, peripherals, and industrial interface options such as EtherCAT and PROFIBUS. The AM3352BZCZ100 supports high-level operating systems (HLOS). The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX? Graphics Accelerator subsystem provides 3D graphics acceleration to support display and gaming effects.
AM3352BZCZ100 Features
Up to 1-GHz Sitara? ARM? Cortex?-A8 32?Bit RISC Processor
64KB of General-Purpose On-Chip Memory Controller (OCMC) RAM
Accessible to All Masters
Supports Retention for Fast Wakeup
External Memory Interfaces (EMIF)
Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem (PRU-ICSS)
Power, Reset, and Clock Management (PRCM) Module
AM3352BZCZ100 Applications
Advanced Toys
Connected Vending Machines
Printers
Home and Industrial Automation
Weighing Scales
