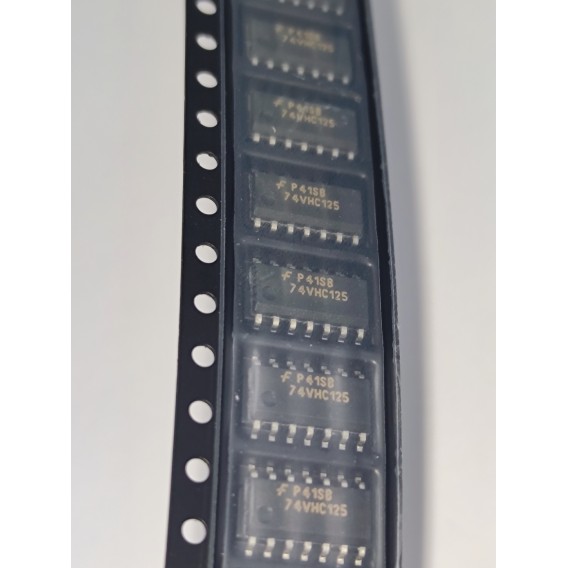

74VHC125MX
74VHC125MX datasheet pdf and Logic - Buffers, Drivers, Receivers, Transceivers product details from ON Semiconductor stock available at Feilidi
- Manufacturer: ON Semiconductor
- NO: 598-74VHC125MX
- Package: 14-SOIC (0.154, 3.90mm Width)
- Datasheet:
- Stock: 2871
- Description: 74VHC125MX datasheet pdf and Logic - Buffers, Drivers, Receivers, Transceivers product details from ON Semiconductor stock available at Feilidi(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | 74VHC |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C TA |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Technology | CMOS |
| RoHS Status | ROHS3 Compliant |
| Published | 2014 |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) |
| Lead Free | Lead Free |
| Number of Terminations | 14 |
| Factory Lead Time | 4 Weeks |
| Weight | 150mg |
| Number of Pins | 14 |
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Pbfree Code | yes |
| Number of Ports | 2 |
| ECCN Code | EAR99 |
| Contact Plating | Tin |
| Radiation Hardening | No |
| Packing Method | TR |
| Number of Functions | 4 |
| JESD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Polarity | Non-Inverting |
| Voltage - Supply | 2V~5.5V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Supply Voltage | 3.3V |
| Base Part Number | 74VHC125 |
| Supply Voltage-Max (Vsup) | 5.5V |
| Supply Voltage-Min (Vsup) | 2V |
| Number of Channels | 4 |
| Subcategory | Bus Driver/Transceivers |
| Power Supplies | 2/5.5V |
| Family | AHC/VHC |
| Output Type | 3-State |
| Turn On Delay Time | 15 ns |
| Load Capacitance | 50pF |
| Logic Function | Buffer, Inverting |
| Propagation Delay | 15 ns |
| Number of Bits per Element | 1 |
| Quiescent Current | 4μA |
| Current - Output High, Low | 8mA 8mA |
| Number of Output Lines | 3 |
| Logic Type | Buffer, Non-Inverting |
| Max I(ol) | 0.008 A |
| Control Type | ENABLE LOW |
| Prop. Delay@Nom-Sup | 8.5 ns |
74VHC125MX Overview
Logical driver uses a neat 14-SOIC (0.154, 3.90mm Width) package. Tape & Reel (TR) external packaging. Available in Surface Mount. Voltage buffer adopts Buffer, Non-Inverting logic prototype. Buffer IC is fed with a voltage of 2V~5.5V. Qualified to operate within -40°C~85°C TA. The high and low logic state output current of logical driver is 8mA 8mA. Logical driver can deal with 3-State output (s). Digital buffer is one of the 74VHC series devices. 14 terminations with different functions. Buffer IC reuqires a supply voltage of 3.3V. AHC/VHC family part. Buffer IC is suitable for Surface Mount applications. Logical driver has 14 pins. Enhanced with 2 ports. The bus transceiver employs 1 bits for each element. You can search "74VHC125" for other related electrical components. Specifically, digital transciever is a kind of Bus Driver/Transceivers. The digital buffer starts up under ENABLE LOW control technology. In quiescent state, the electronic part uses 4μA. It is recommended to use a 2/5.5V power supply. It is generally sold in TR package. To supply the device, a minimum voltage of 2V is a must. 4 channels for high quality communication. Wireless transceiver is able to output 3 lines.
