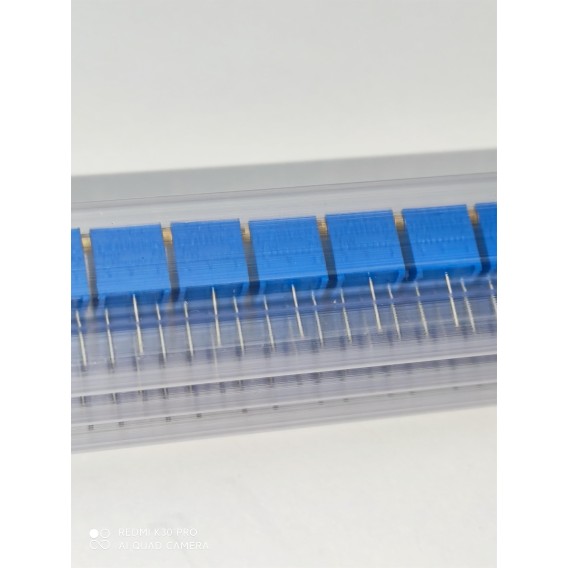

3266X-1-103LF
TRIMMER 10KOHM 0.25W PC PIN SIDE
- Manufacturer: Bourns Inc.
- NO: 103-3266X-1-103LF
- Package: -
- Datasheet:
- Stock: 6618
- Description: TRIMMER 10KOHM 0.25W PC PIN SIDE(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | Trimpot® 3266 - Sealed |
| Mount | PCB, Through Hole |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Size / Dimension | Rectangular - 0.250 x 0.170 Face x 0.270 H 6.35mmx4.31mmx6.85mm |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Pin |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| RoHS Status | ROHS3 Compliant |
| Published | 2006 |
| Voltage - Rated DC | 300V |
| Height | 7.24mm |
| Voltage - Rated AC | 300V |
| Color | Blue |
| Lead Free | Contains Lead |
| Depth | 4.5mm |
| Number of Terminations | 3 |
| Factory Lead Time | 8 Weeks |
| Weight | 425.242847mg |
| REACH SVHC | No SVHC |
| Resistance | 10kOhm |
| Pbfree Code | yes |
| Thickness | 5.59mm |
| Contact Plating | Tin |
| Radiation Hardening | No |
| Power Rating | 250mW |
| Terminal Shape | WIRE |
| Tolerance | ±10% |
| JESD-609 Code | e3 |
| Temperature Coefficient | ±100ppm/°C |
| Lead Diameter | 500 μm |
| Max Power Dissipation | 250mW |
| Base Part Number | 3266X |
| Construction | Multi-Turn |
| Pitch | 2.54mm |
| Termination Style | PC Pins |
| Military Standard | Not |
| Power (Watts) | 0.25W 1/4W |
| Rated Power Dissipation (P) | 0.25W |
| Resistor Type | TRIMMER |
| Rated Temperature | 70°C |
| Actuator Type | SCREW |
| Actuator Orientation | HORIZONTAL |
| Adjustment Type | Side Adjustment |
| Number of Turns | 12 |
| Ganging Number | 1 |
| Taper | Linear |
| Resistive Material | Cermet |
