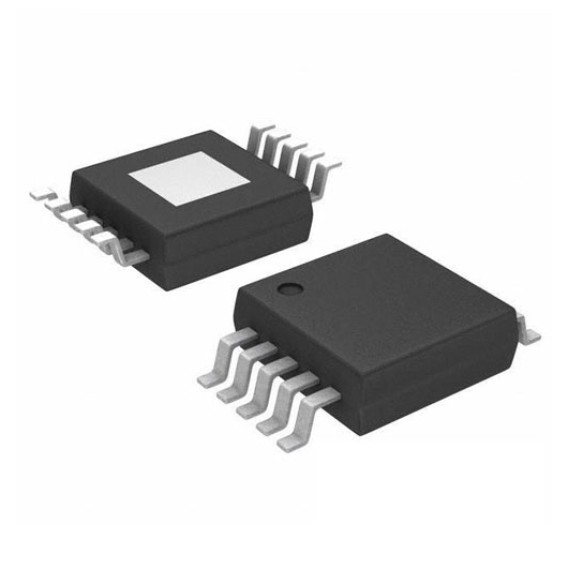

ADA4310-1ARHZ
2 Channels 6μA -62 dB Instrumentational OP Amps 9V 5V~12V ±2.5V~6V ADA4310 10 Pins 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad
- Manufacturer: Analog Devices Inc.
- NO: 84-ADA4310-1ARHZ
- Package: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad
- Datasheet:
- Stock: 2528
- Description: 2 Channels 6μA -62 dB Instrumentational OP Amps 9V 5V~12V ±2.5V~6V ADA4310 10 Pins 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Technology | CMOS |
| Operating Supply Current | 11.2mA |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad |
| Length | 3.1mm |
| Height | 940μm |
| Width | 3.1mm |
| Operating Supply Voltage | 9V |
| Bandwidth | 190MHz |
| Lead Free | Contains Lead |
| Number of Terminations | 10 |
| Factory Lead Time | 8 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 10 |
| Lifecycle Status | PRODUCTION (Last Updated: 4 weeks ago) |
| Pbfree Code | no |
| ECCN Code | EAR99 |
| Contact Plating | Tin |
| Number of Functions | 2 |
| Nominal Supply Current | 7.6mA |
| JESD-609 Code | e3 |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 12V |
| Terminal Pitch | 0.5mm |
| Base Part Number | ADA4310 |
| Pin Count | 10 |
| Number of Channels | 2 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Subcategory | Operational Amplifier |
| Input Offset Voltage (Vos) | 1mV |
| Slew Rate | 820V/μs |
| Qualification Status | Not Qualified |
| Amplifier Type | Current Feedback |
| Gain Bandwidth Product | 190MHz |
| Common Mode Rejection Ratio | -62 dB |
| Supply Type | Dual, Single |
| Frequency Compensation | YES |
| Supply Voltage Limit-Max | 6V |
| Micropower | NO |
| Programmable Power | NO |
| Power | YES |
| Voltage - Supply, Single/Dual (±) | 5V~12V ±2.5V~6V |
| Low-Offset | NO |
| Low-Bias | NO |
| Current - Input Bias | 6μA |
Product Description:
The ADA4310-1ARHZ is a high-speed voltage feedback operational amplifier designed to provide precise and high-performance signal amplification. This operational amplifier offers exceptional performance, high bandwidth, and low distortion, making it suitable for various high-speed signal processing applications.
Features:
1.High Bandwidth: The ADA4310-1ARHZ is a high-bandwidth operational amplifier capable of handling fast-changing signals with minimal distortion.
2.Low Distortion: This operational amplifier is designed with low distortion characteristics, ensuring that the amplified output closely resembles the input signal.
3.High-Speed Performance: The ADA4310-1ARHZ provides rapid response times, making it suitable for applications that require quick signal processing.
4.Wide Supply Voltage Range: The operational amplifier supports a wide supply voltage range, accommodating various power supply configurations.
5.Low Input Bias Current: The ADA4310-1ARHZ features low input bias current, reducing the current drawn from the input source and minimizing loading effects.
Applications:
The ADA4310-1ARHZ operational amplifier finds applications in a wide range of electronic systems, including:
1.High-Speed Signal Amplification: It is commonly used for amplifying high-speed signals in various applications, such as communication systems and data transmission.
2.Signal Conditioning: The operational amplifier is employed in signal conditioning circuits to prepare analog signals for further processing.
3.Test and Measurement Equipment: This operational amplifier is suitable for use in test and measurement instruments, where accurate signal amplification is required.
4.High-Frequency Signal Processing: The ADA4310-1ARHZ can be used in high-frequency signal processing applications, such as in radar systems and high-speed data communication.
5.Pulse and Timing Circuits: The operational amplifier is commonly used in pulse and timing circuits to generate precise timing signals and trigger events.
In summary, the ADA4310-1ARHZ operational amplifier offers high-speed performance, low distortion, and wide supply voltage range. Whether you're working on high-speed signal amplification, signal conditioning, test and measurement equipment, or high-frequency signal processing, this operational amplifier provides reliable and accurate signal amplification for enhanced system performance and signal integrity.
