AD8604ARZ

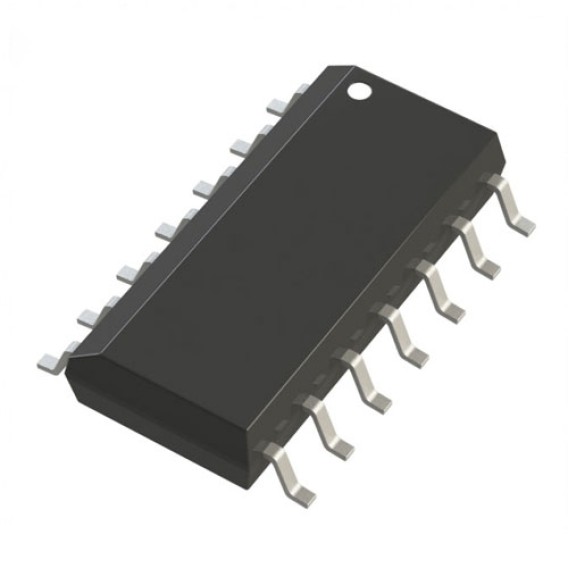

4 Channels 50mA per Channel 0.2pA 80 dB Instrumentational OP Amps 0.001μA 5V 2.7V~5.5V AD8604 14 Pins 14-SOIC (0.154, 3.90mm Width)
- Manufacturer: Analog Devices Inc.
- NO: 84-AD8604ARZ
- Package: 14-SOIC (0.154, 3.90mm Width)
- Datasheet:
- Stock: 9989
- Description: 4 Channels 50mA per Channel 0.2pA 80 dB Instrumentational OP Amps 0.001μA 5V 2.7V~5.5V AD8604 14 Pins 14-SOIC (0.154, 3.90mm Width)(Kg)
- Delivery:
- Payment:
In Stock
Please send RFQ , we will respond immediately.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
You may place an order without registering to Chip Smart.
We strongly suggest you sign in before purchasing as you
can track your order in real time.
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)It is recommended to request for quotations to get the latest
prices and inventories about the part.
Our sales will reply to
your request by email within 24 hours.
1. You'll receive an order information email in your inbox.
(Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some
extent, the sales manager is going to reconfirm the order and let you know if there
are any updates.
Shipping starts at $40, but some countries will exceed $40. For
example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time
zone and country.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
Delivery TimeOnce the goods are shipped, estimated delivery time depends on the shipping methods you chose:
FedEx International, 5-7 business days.
The following are some common countries' logistic time.
| Parameters | |
|---|---|
| Part Status | Active |
| Series | DigiTrim® |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Technology | CMOS |
| Operating Supply Current | 4.8mA |
| RoHS Status | ROHS3 Compliant |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) |
| Length | 8.75mm |
| Height | 1.5mm |
| Width | 4mm |
| Operating Supply Voltage | 5V |
| Bandwidth | 8.4MHz |
| Lead Free | Contains Lead |
| Number of Terminations | 14 |
| Factory Lead Time | 12 Weeks |
| REACH SVHC | No SVHC |
| Number of Pins | 14 |
| Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) |
| Pbfree Code | no |
| ECCN Code | EAR99 |
| Contact Plating | Tin |
| Radiation Hardening | No |
| Number of Functions | 4 |
| JESD-609 Code | e3 |
| Surface Mount | YES |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 3V |
| Terminal Pitch | 1.27mm |
| Base Part Number | AD8604 |
| Pin Count | 14 |
| Number of Channels | 4 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Subcategory | Operational Amplifier |
| Input Offset Voltage (Vos) | 600μV |
| Slew Rate | 6V/μs |
| Voltage Gain | 98.06dB |
| Supply Current-Max | 6mA |
| Settling Time | 1 μs |
| Output Type | Rail-to-Rail |
| Amplifier Type | General Purpose |
| Common Mode Rejection Ratio | 80 dB |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Architecture | VOLTAGE-FEEDBACK |
| Frequency Compensation | YES |
| Supply Voltage Limit-Max | 6V |
| Quiescent Current | 1.2mA |
| Output Current per Channel | 50mA |
| Average Bias Current-Max (IIB) | 0.001μA |
| Bias Current-Max (IIB) @25C | 0.00006μA |
| Voltage - Supply, Single/Dual (±) | 2.7V~5.5V |
| Low-Offset | NO |
| Low-Bias | YES |
| Input Voltage Noise Density | 33nV/sqrt Hz |
| Unity Gain BW-Nom | 8200 kHz |
| Current - Input Bias | 0.2pA |
| Voltage - Input Offset | 80μV |
Product Description:
The AD8604ARZ is a high-performance, low-power, quad operational amplifier (op-amp) designed for precision signal amplification and conditioning in various electronic systems. This op-amp offers exceptional performance, low noise, and low distortion, making it ideal for applications that require accurate and reliable signal processing.
Features:
1.Low Offset Voltage: The AD8604ARZ op-amp is designed with low offset voltage, ensuring precise signal amplification with minimal DC voltage errors at the input.
2.Low Noise: This op-amp features low noise characteristics, which minimizes unwanted signal distortion and interference, making it suitable for high-fidelity audio applications and sensor signal conditioning.
3.Wide Bandwidth: The AD8604ARZ offers a wide bandwidth, allowing it to accurately amplify high-frequency signals and fast-changing waveforms.
4.Low Power Consumption: This op-amp is designed with low power consumption, making it suitable for battery-powered or energy-efficient devices, helping to extend battery life in portable electronics.
Applications:
The AD8604ARZ quad operational amplifier finds applications in a wide range of electronic systems, including:
1.Precision Signal Amplification: It is commonly used in precision signal amplification applications, such as instrumentation, data acquisition systems, and control systems, where accuracy and low noise are crucial.
2.Audio Signal Processing: This op-amp is employed in audio signal processing applications, including audio mixers, preamplifiers, and audio equalizers, where high-fidelity sound reproduction is essential.
3.Sensor Signal Conditioning: The AD8604ARZ is suitable for sensor signal conditioning, such as amplifying signals from temperature sensors, pressure sensors, and other transducers.
4.Portable Consumer Electronics: This op-amp is used in various portable consumer electronics, such as digital cameras, portable media players, and handheld gaming devices, where low power consumption and accurate signal processing are vital.
In summary, the AD8604ARZ quad operational amplifier offers low offset voltage, low noise, wide bandwidth, and low power consumption. Whether you're working on precision signal amplification, audio signal processing, sensor signal conditioning, or portable consumer electronics, this op-amp provides accurate and reliable signal amplification for enhanced system performance and signal integrity.
